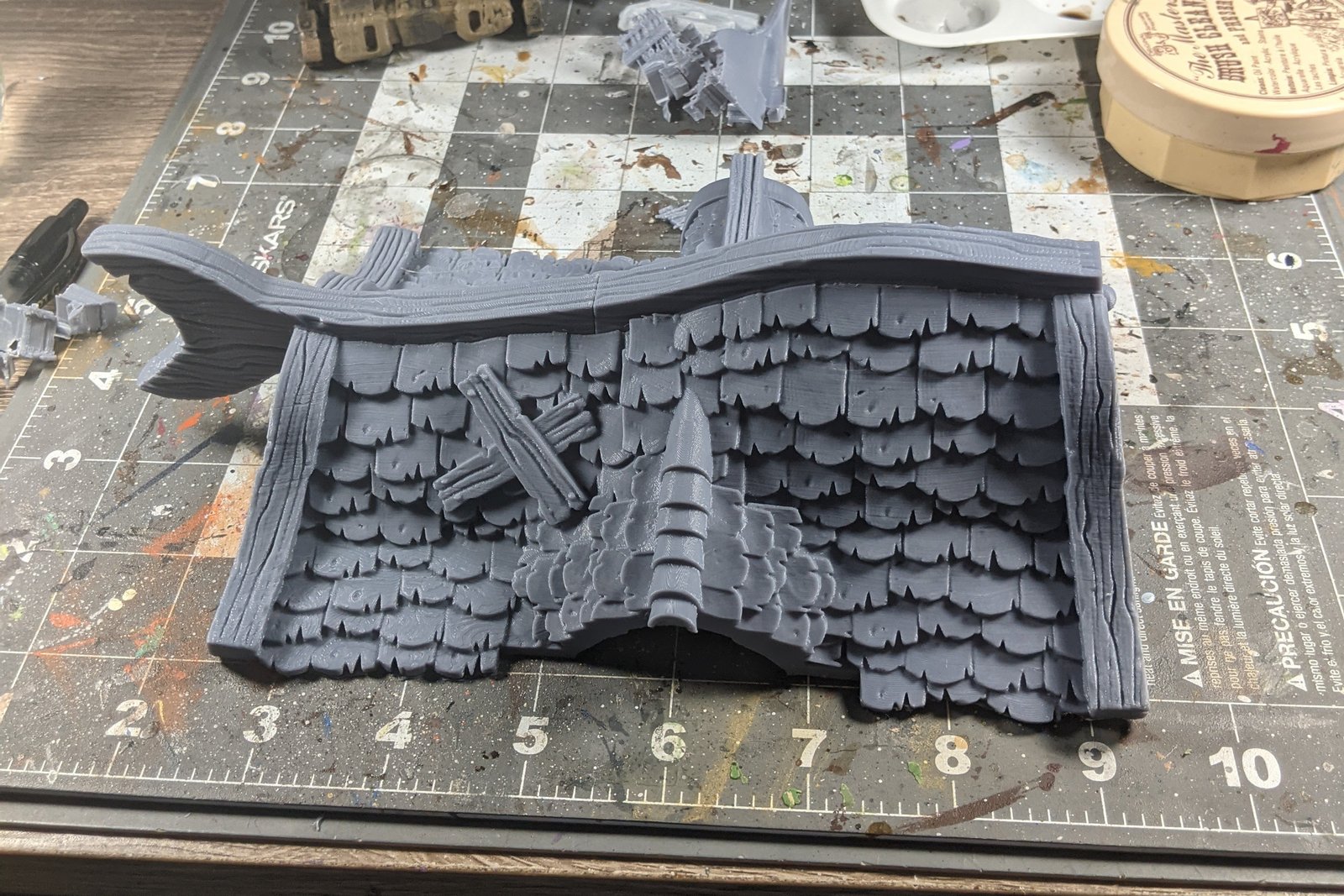

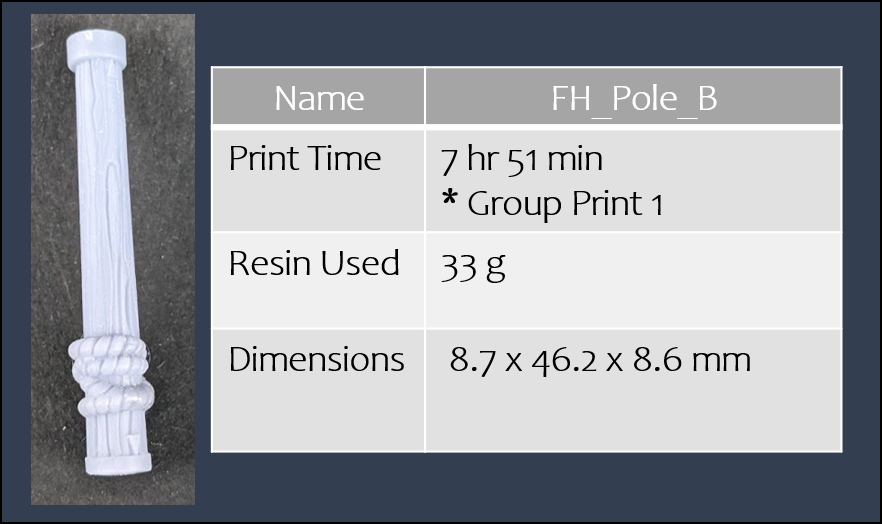

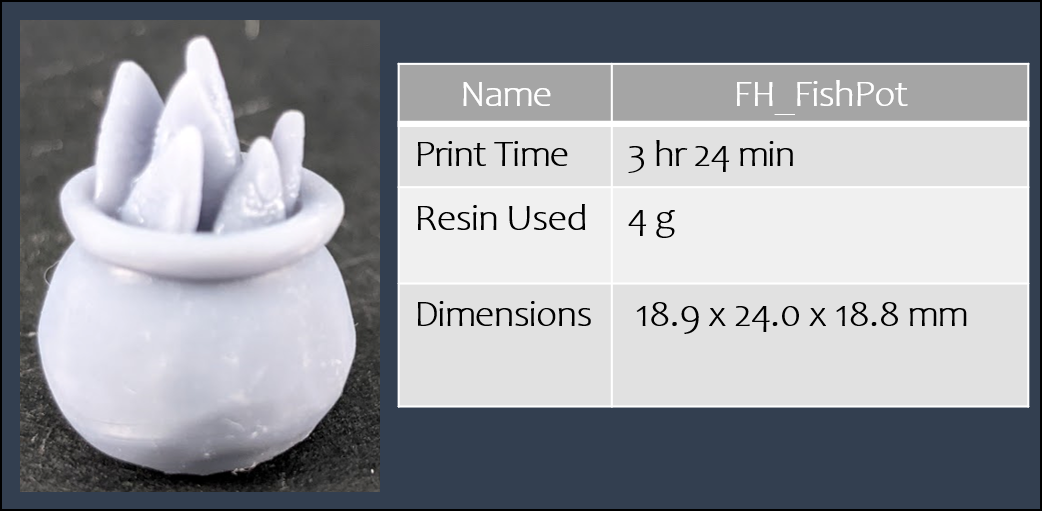

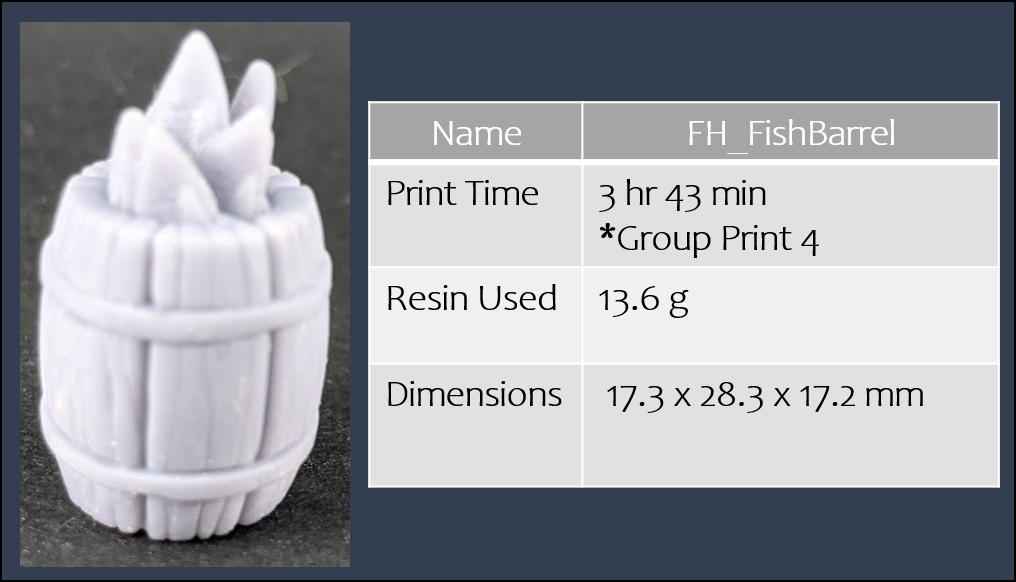

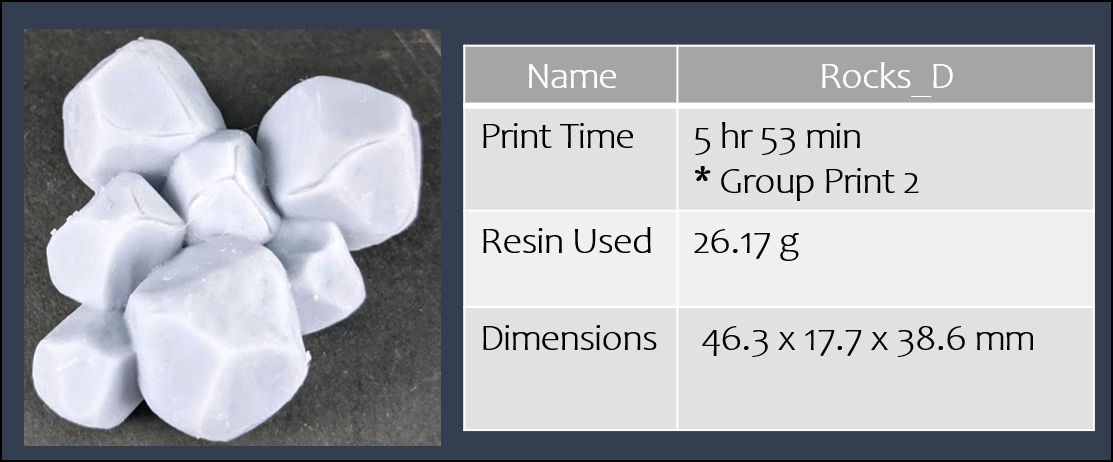

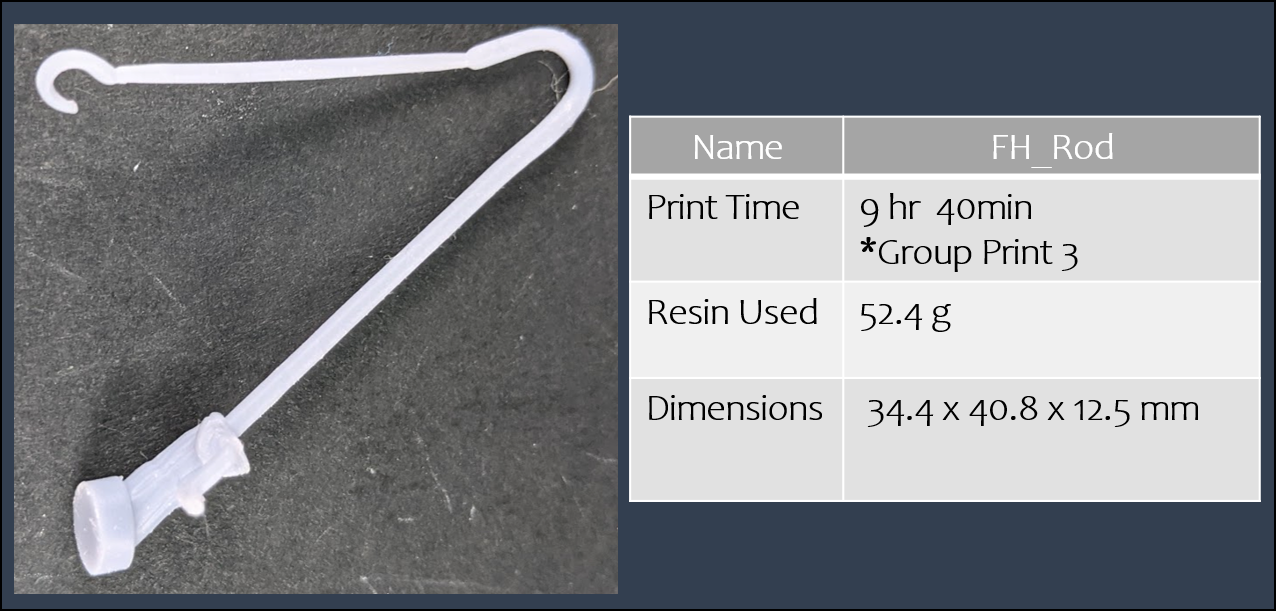

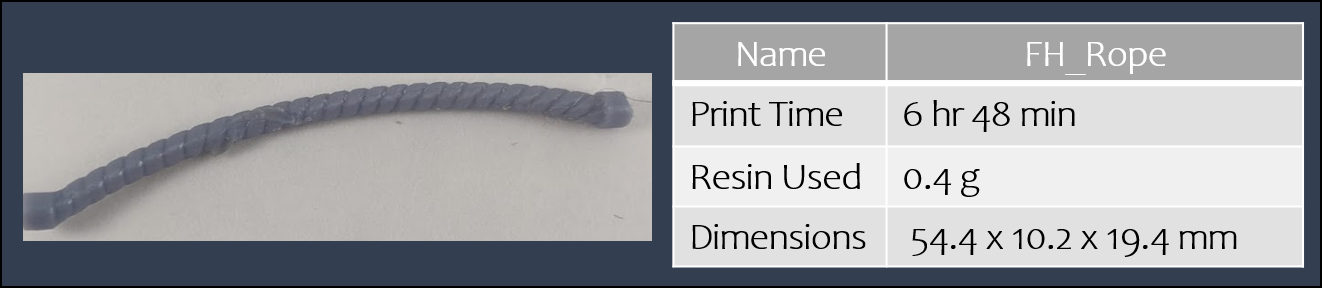

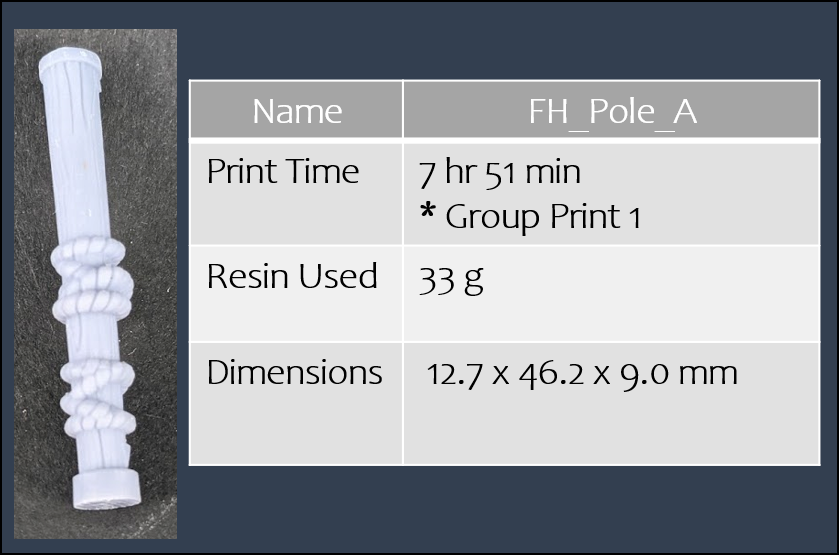

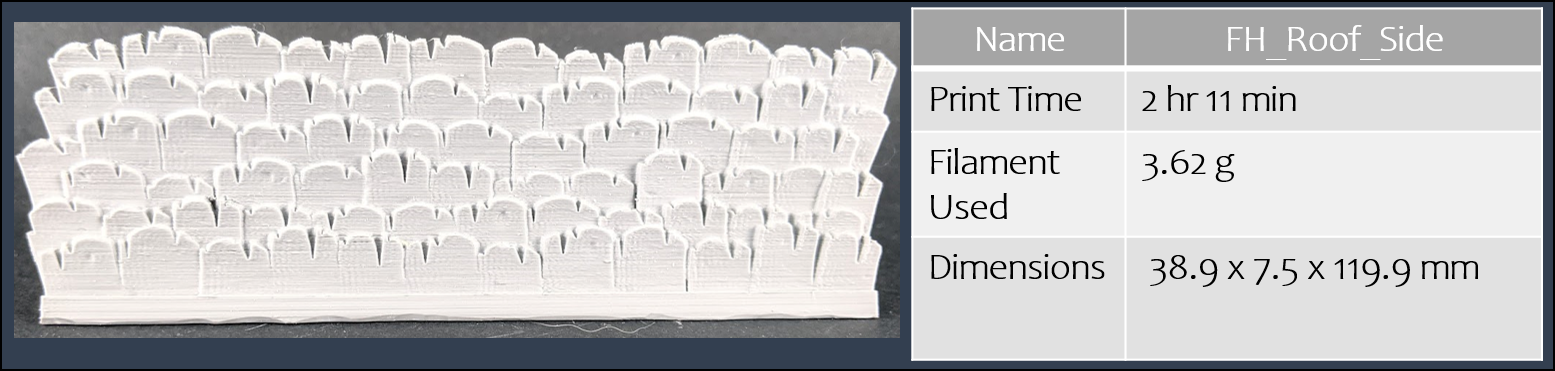

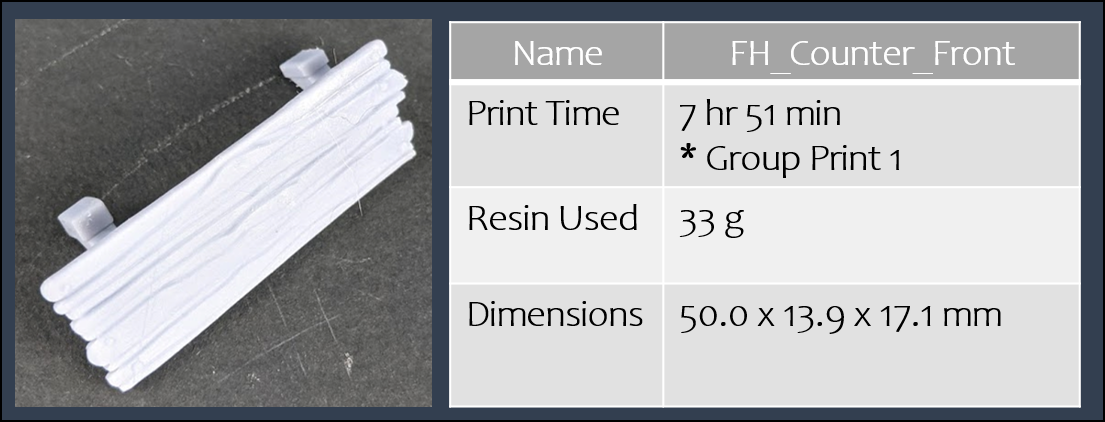

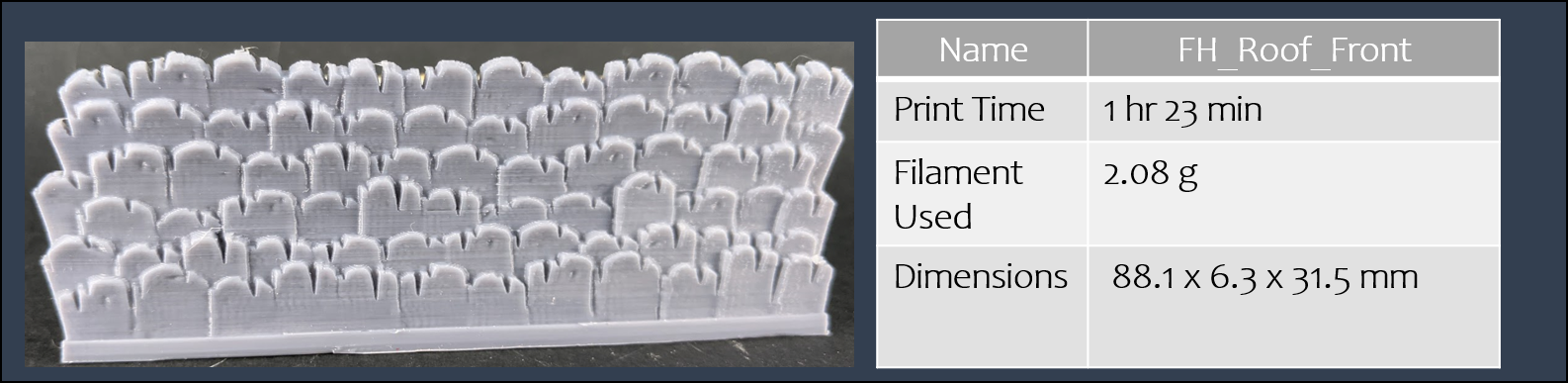

For the Fisher hut Props and miscellaneous components I decided to print these pieces in resin as opposed to my filament. This allowed me to print the tiny bits in more detail while not worrying about the compatibility of printing on FDM. The only exceptions to this was the counter roofs which I printed in FDM to ensure consistency in the roof. I did several of these pieces in batches and together which is why the Props and Misc are bundled together in this write up.

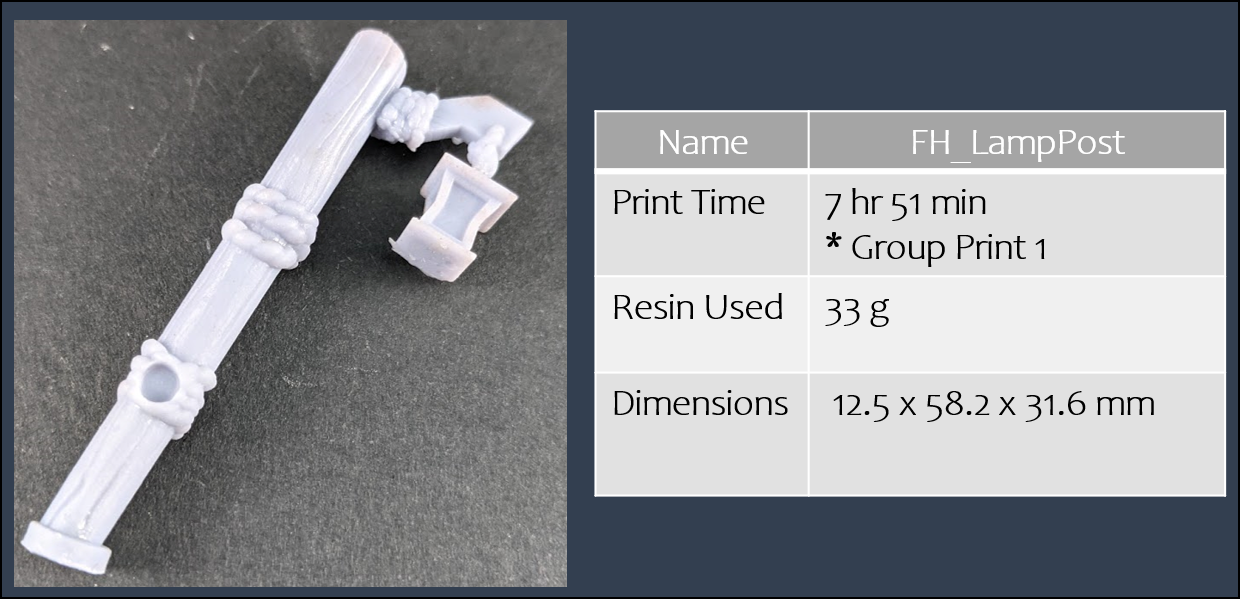

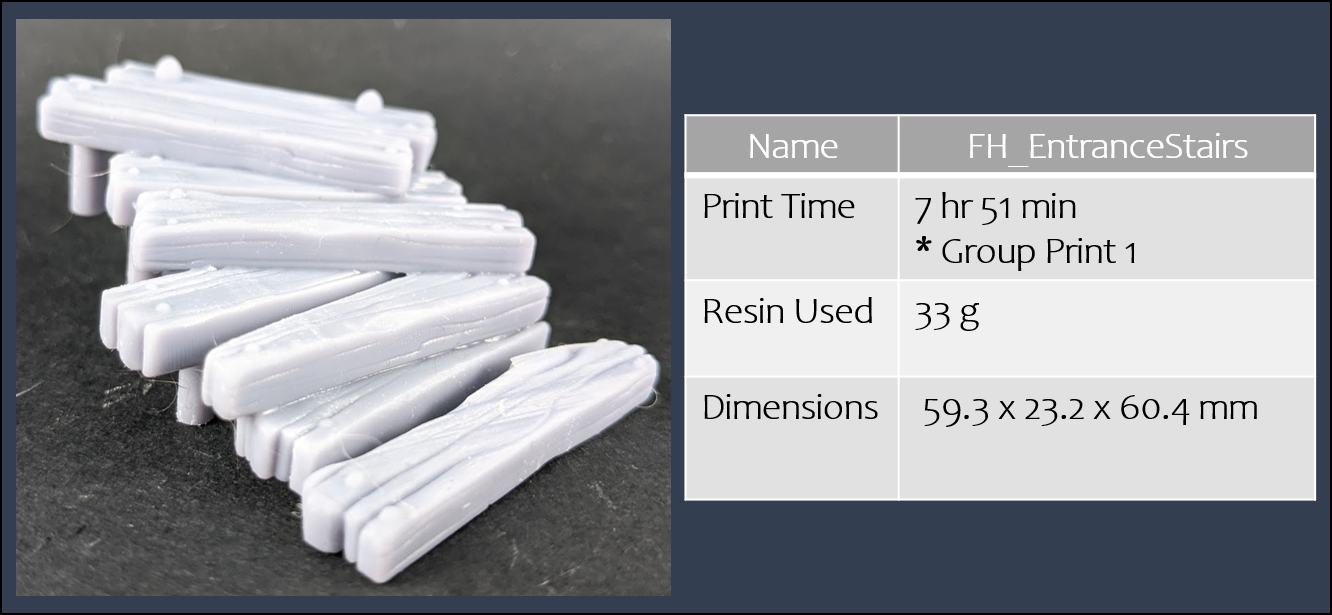

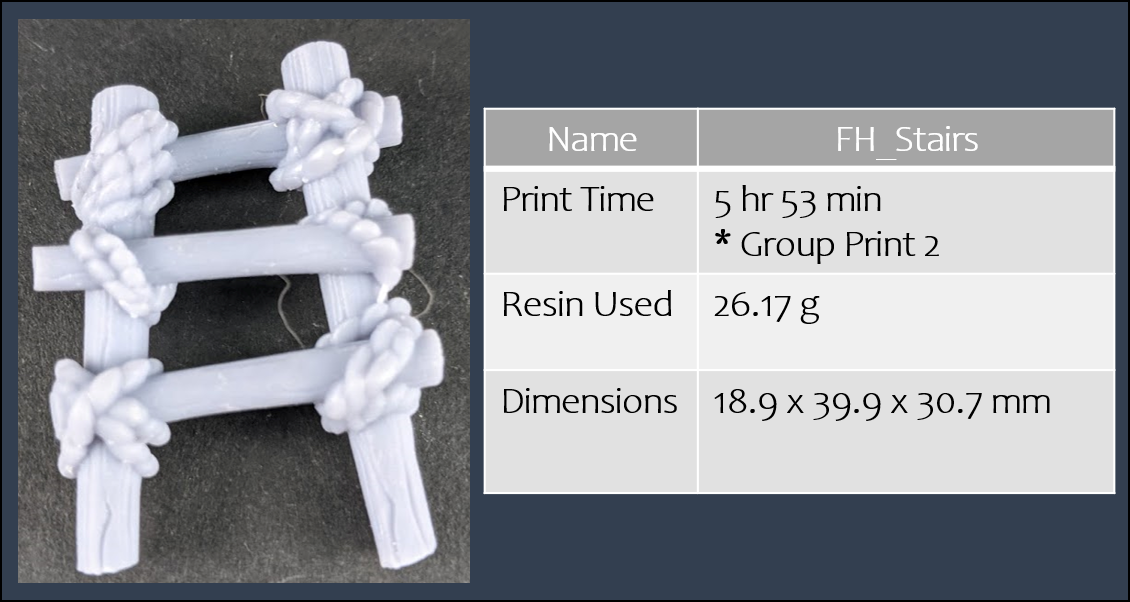

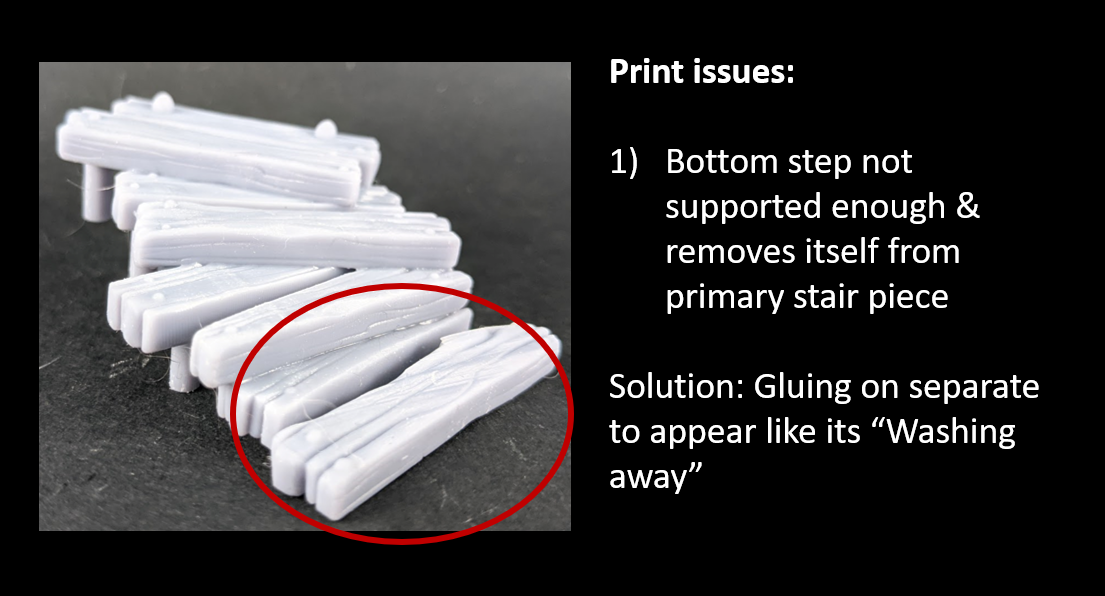

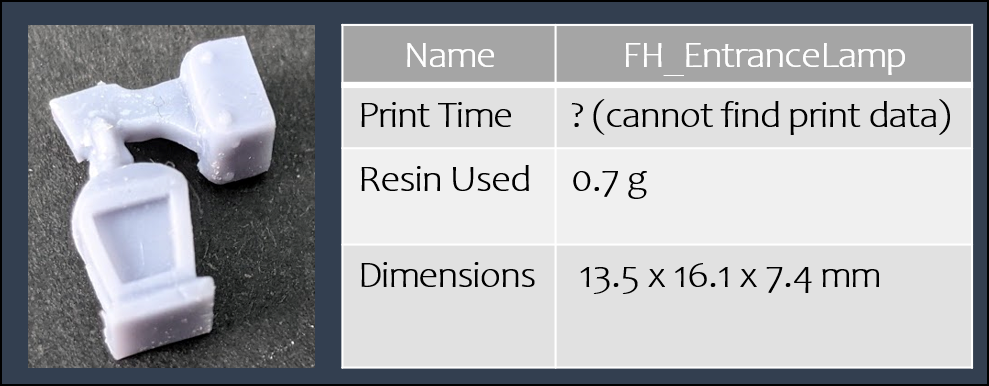

I only had two issues while printing these models which I believe to be from lack of supports rather than my printer settings. Those two pieces were the Lamp Post of which the lamp itself formed a unique and strange shape. The print did not fail but merely shifted the print. This happened twice before I added additional supports and the lamp printed normally. The other issue part was the Entrance Stairs. The bottom stair of this file printed almost separately twice and removed. I am able to save the piece and can just make the stairs look more weathered going up to the hut.
Otherwise these prints were really straight forward and easy to do using the presupported files done by CastnPlay
Print Issues

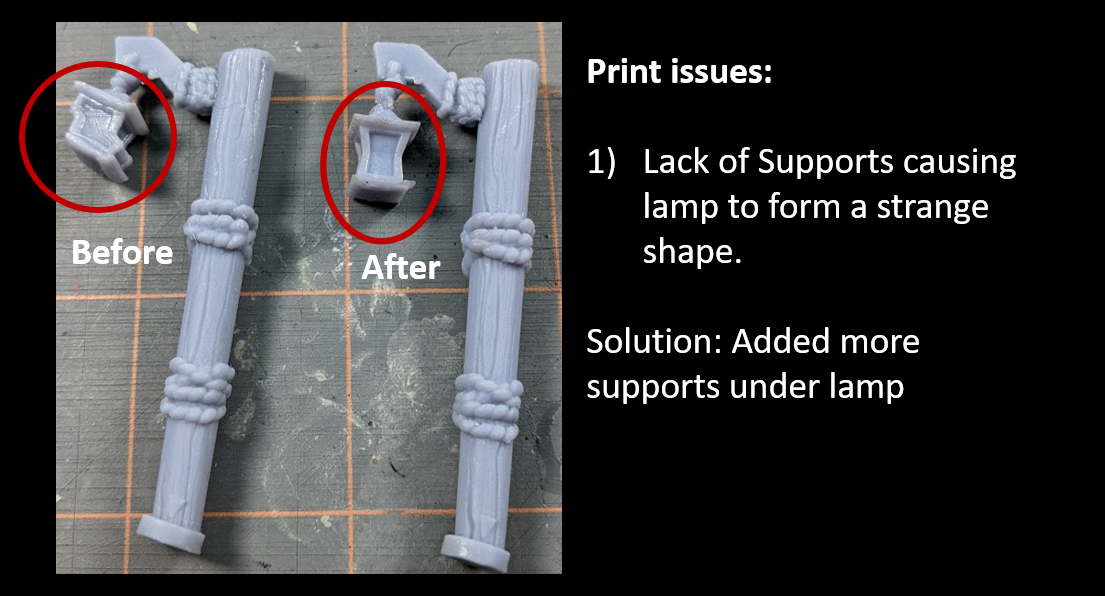

I encountered two issues while printing these models the 1st being the FH_LampPost and the FH_Entrance stairs. Both of these pieces were printed in resin on my Phrozen sonic mini 4k. I believe these issues (highlighted in red) needed more supports and was fixed in the case of the Lamp Post by adding additional supports.
Print Data
Printer: Prusa mk3s
Filament: ESun PLA+ Grey
Layer Height: 0.1 mm
For ALL FDM print profile settings used in this print build. Here is the Google Doc which lists them all.

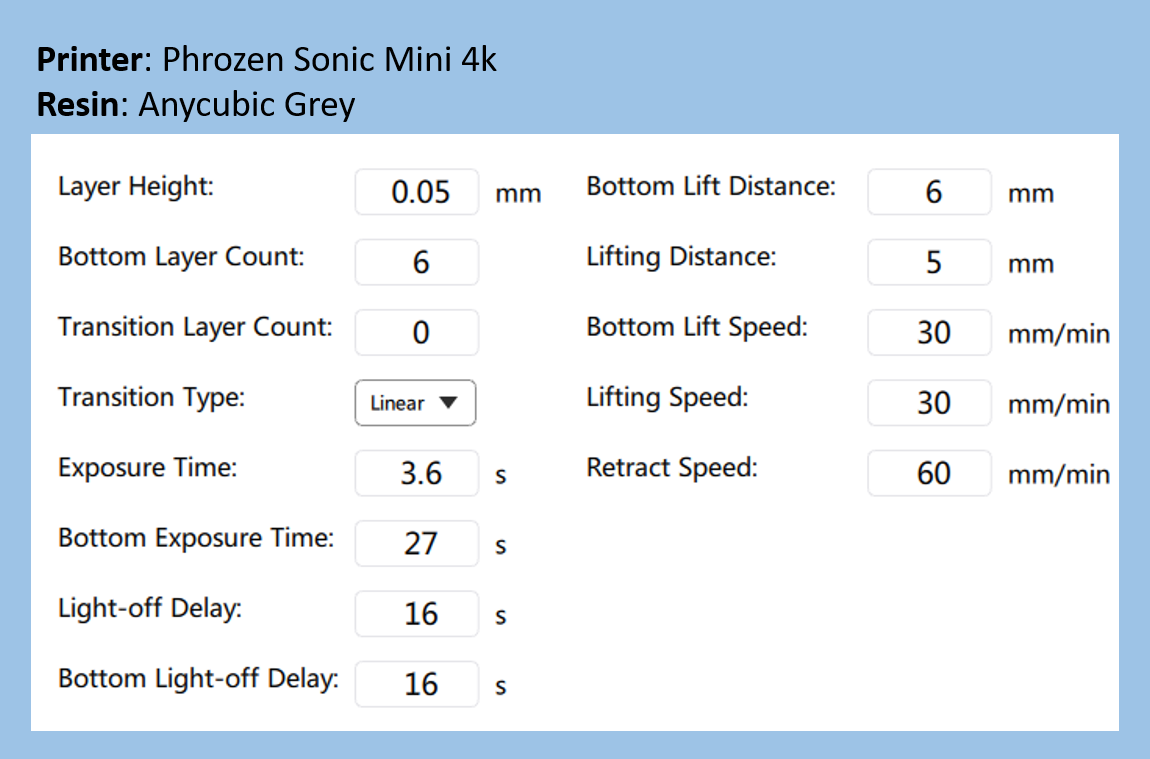

Printer: Phrozen Sonic Mini 4K
Resin: Anycubic Grey
Layer Height: 0.05 mm
Time to Print all components: 1 day 15 hr 7 min
Filament to Print: 177.99 g Filament and 2.7 g Resin (FH_Roof_Fish printed in resin)
Estimated Cost to Print: $3.70
