Overview ~ Print issues/Areas of Improvement ~ Print Data ~ Where to find Files

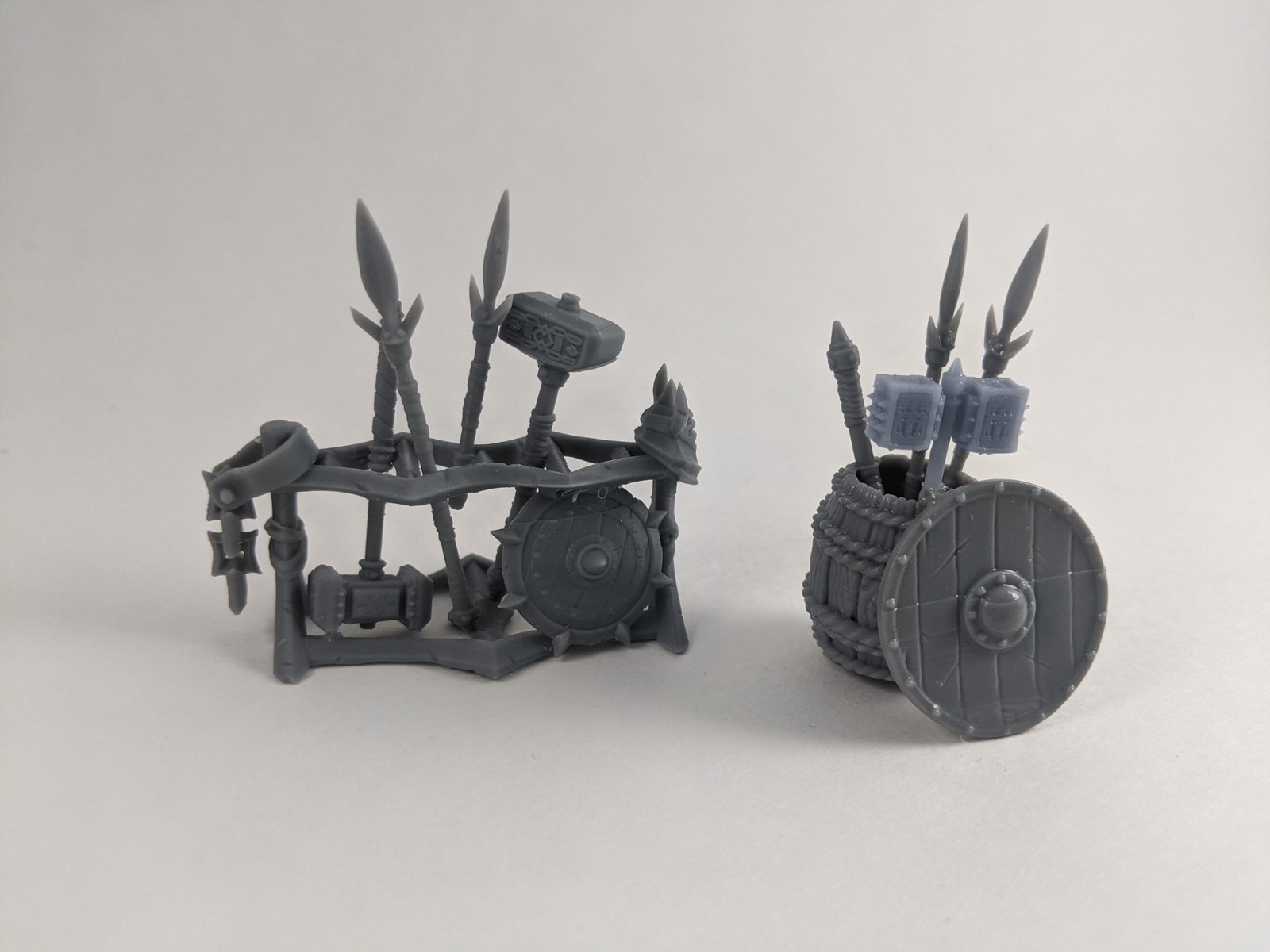

Lets continue on more scatter terrain! The Weapon Racks, while I absolutely agree these guys look pretty cool the long term mom in me is screaming that they wont last long without breaking. Perhaps these are then the perfect contenders for a flexible resin when I finally get some to experiment with.

With the scatter terrain weapon racks these guys would be perfect for dungeon armories, blacksmiths, barracks etc. I am sure I’ll find use for them in several builds soon.

This print did cause me a bit of trouble as I first attempted them on my Prusa mk3s printer before I got my resin printer. Overall again I was too lazy in supports and used the resin included supports (really should stop doing that), this does not do the FDM printer justice in comparison of the two technologies.

I did also print each weapon rack twice on the resin printer due to different components not supporting well or not forming due to under exposure. In the end I never fully tuned my resin well and ended up cutting off a piece of each and gluing it together to make the ideal final product I was looking for in the barrel model. You can tell due to the two varying colors.

Print Data estimates a total print time of approximately 9 hours and estimated cost of all attempts to be $1.42.

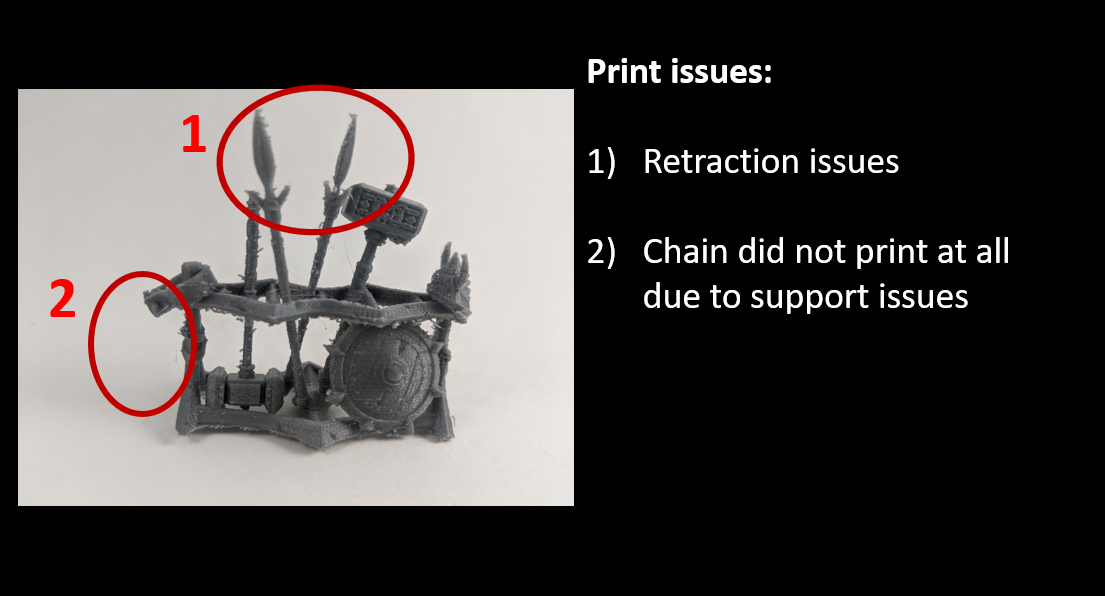

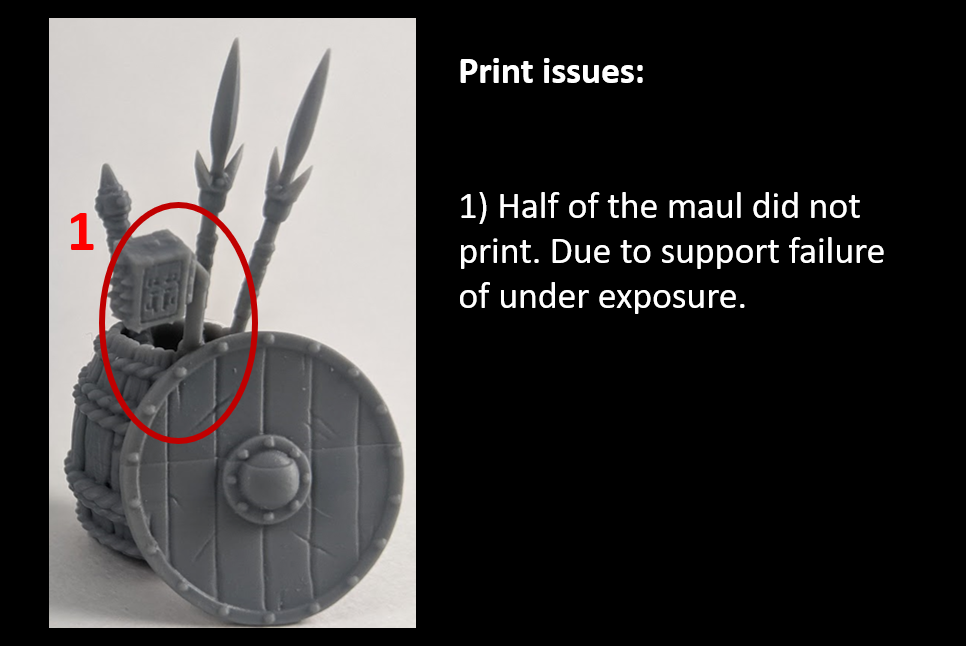

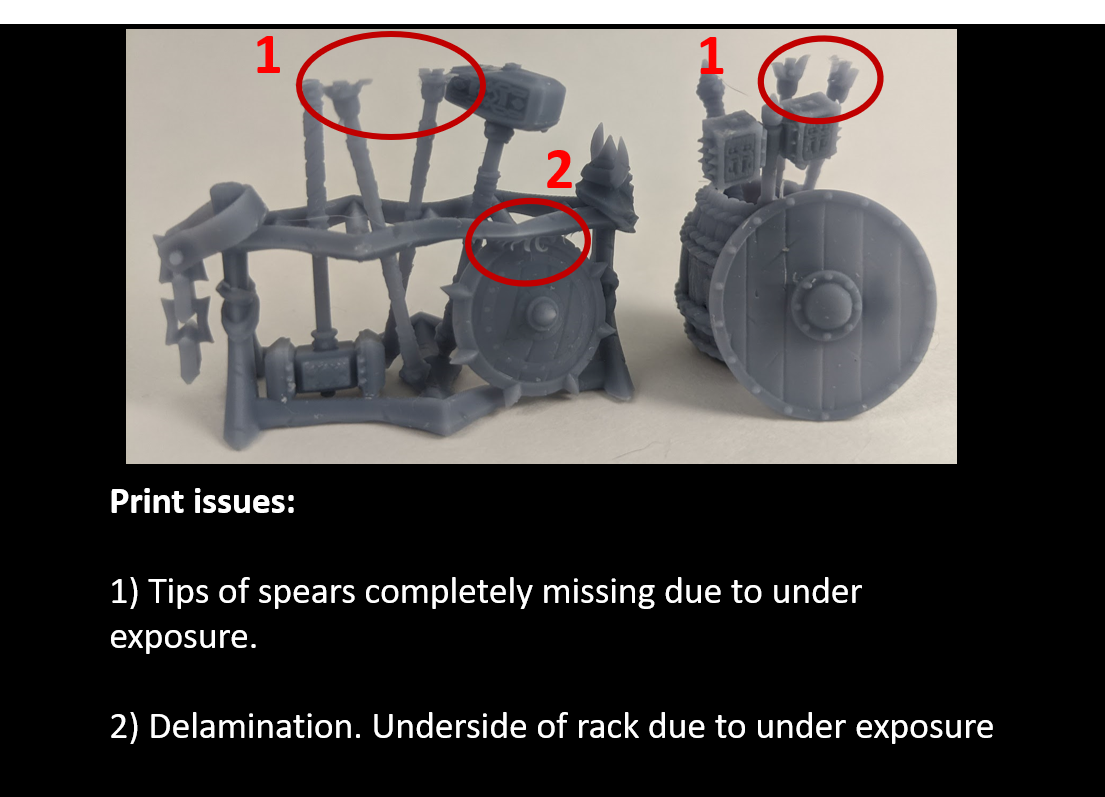

Print Issues/ Areas of Improvement

Issue AqZ

Print Data

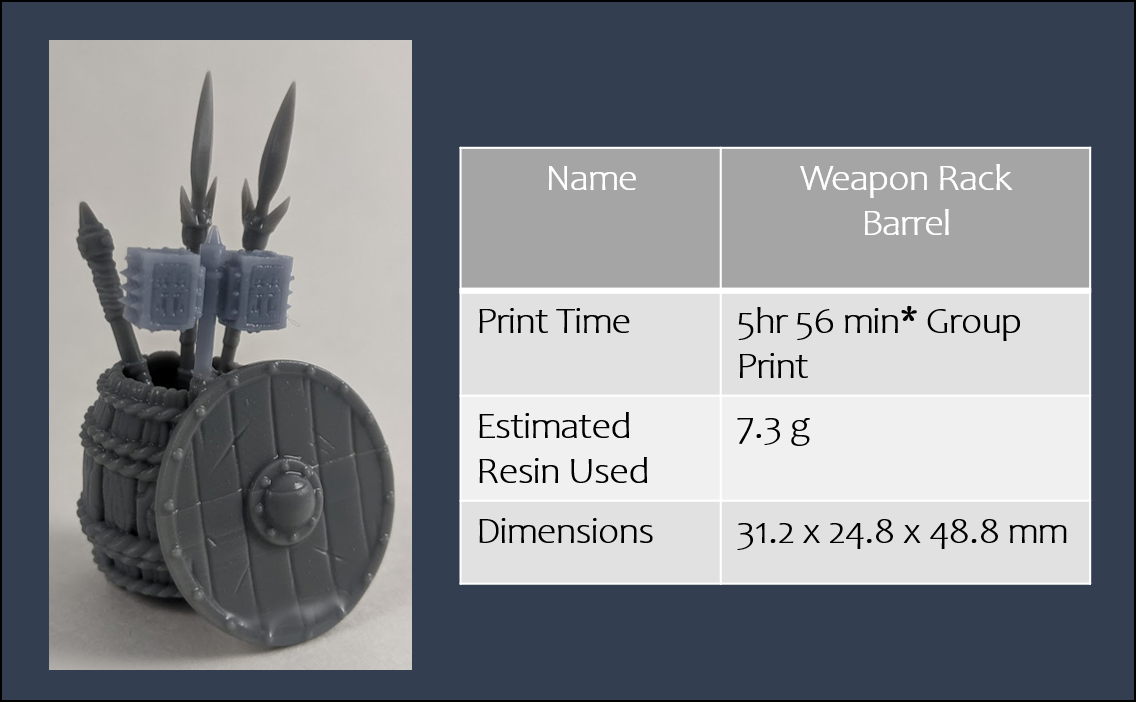

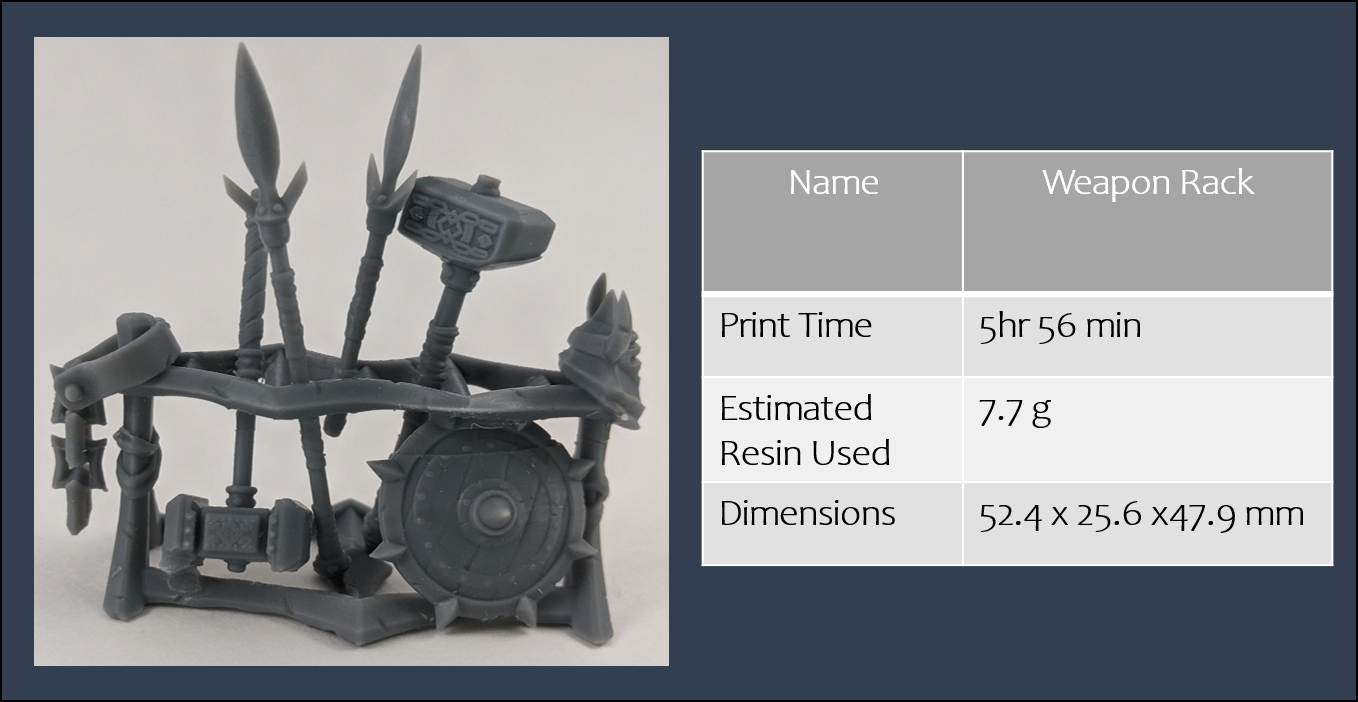

Pictures of individual piece data is shown from resin perspective but models were printed on both FDM and resin printers. Overall data shown below.

Filament Data

Printer: Prusa mk3s
Filament: Hatchbox Silver PLA, Hatchbox Grey PLA (Treasure Small B)
Orientation: Loaded in orientation using the resin pre-supports
Layer Height: 0.08 mm
Print Profile: Modified version of Fat Dragon games miniature figure profile
Total Time to Print Filament: 10 hr 3 min
Total Material Used: 14.1 g Filament
Material Cost: $0.16

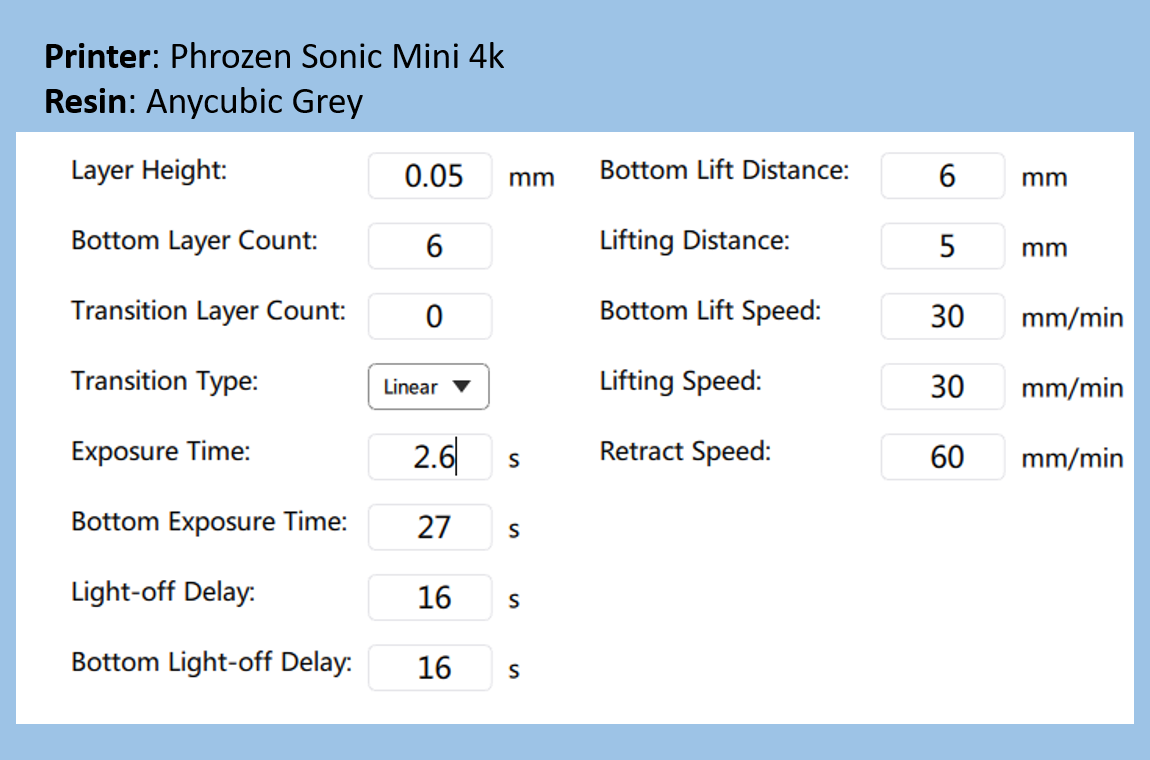

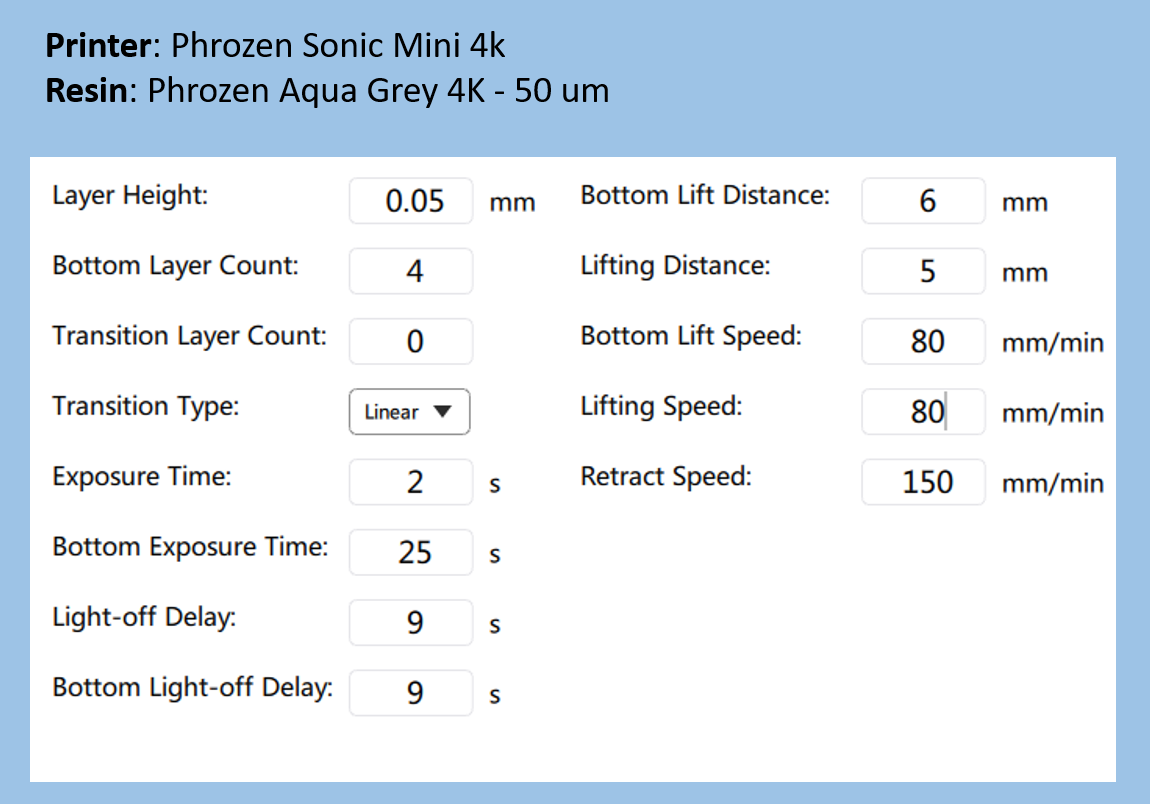

Resin Print Data

Total Time to Print Resin: 10 hr 3 min
Total Material Used: 14.1 g Filament
Material Cost: $0.16

Where to Find these Files

Currently the files for the Weapon Rack files are currently not sold separately. These will be bundled with the entire Fantasy Props Kickstarter late backing. The sculpts and designs are now by the newly branded (November 2020) group on Patreon STL Miniatures.

STL Miniatures: Website
STL Miniatures: Patreon
Online Store: MyMiniFactory (only for past Patreon months currently)
Original Source of Files: 3D Printable Fantasy Props by Rafael Moreno Dominguez

Image Render From Fantasy Props Kickstarter page.
