General Store Project Homepage
Print Logs: Floor, Walls, Roof, Props & Misc
Assembly: Floor, Walls, Roof, Props & Misc

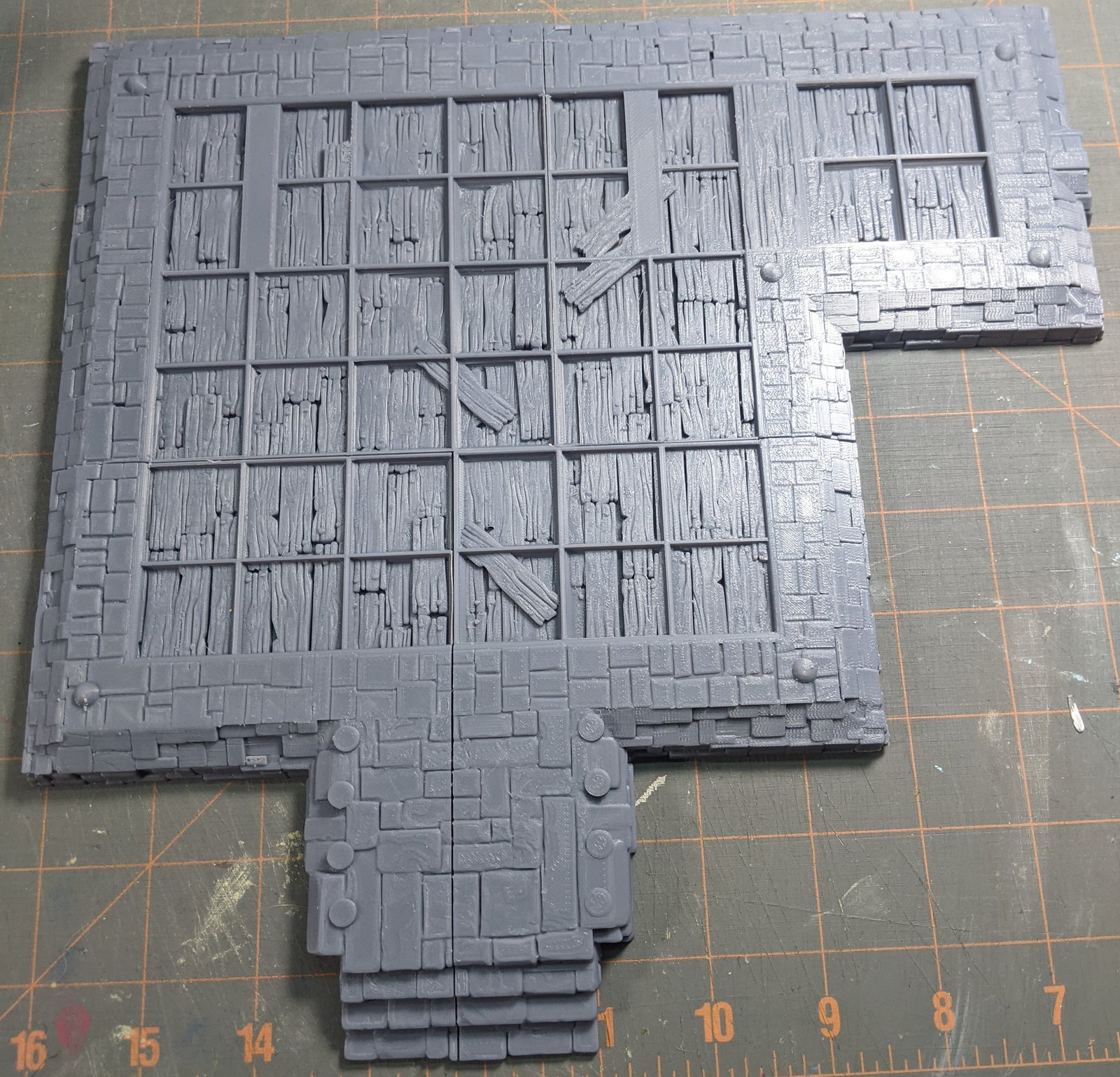

Image of all pieces that make up the General Store First Floor.

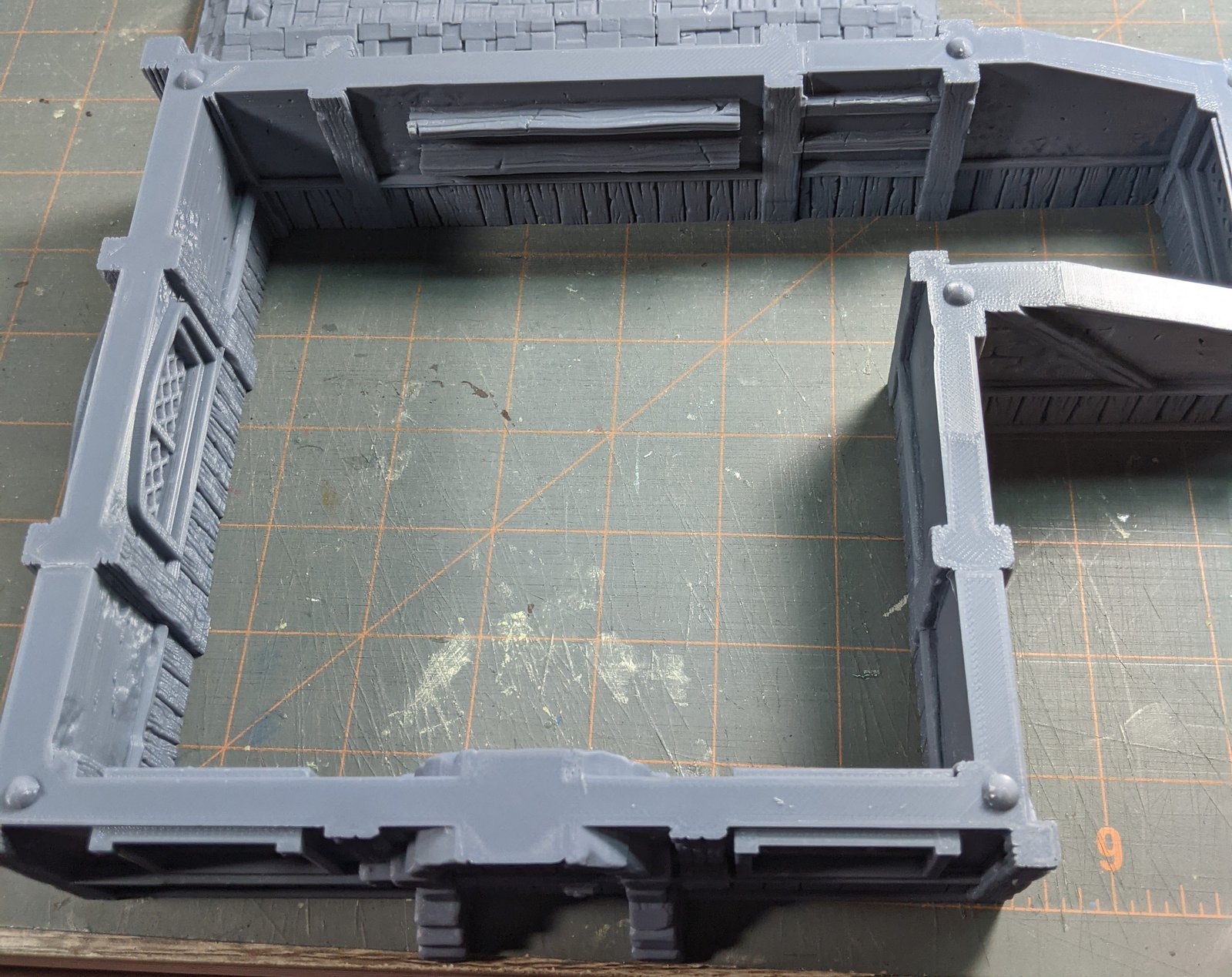

Printing the General Store Wall pieces were a bit tricky. All pieces printed with wall bottom on the build plate in 3 total pieces. Wall Section C was lowered 0.1mm to ensure a solid first layer. Make sure your first layer is completely flush before printing these pieces.

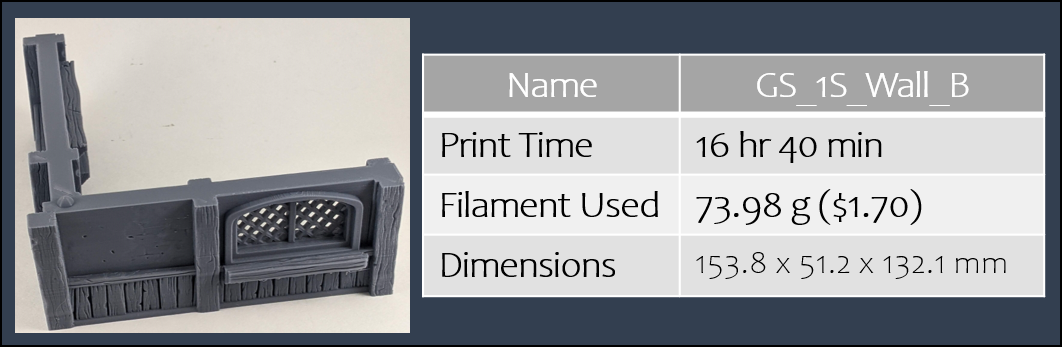

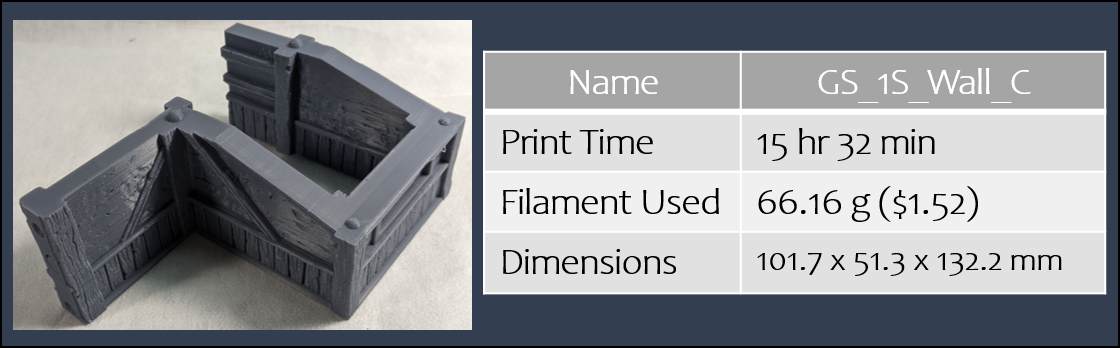

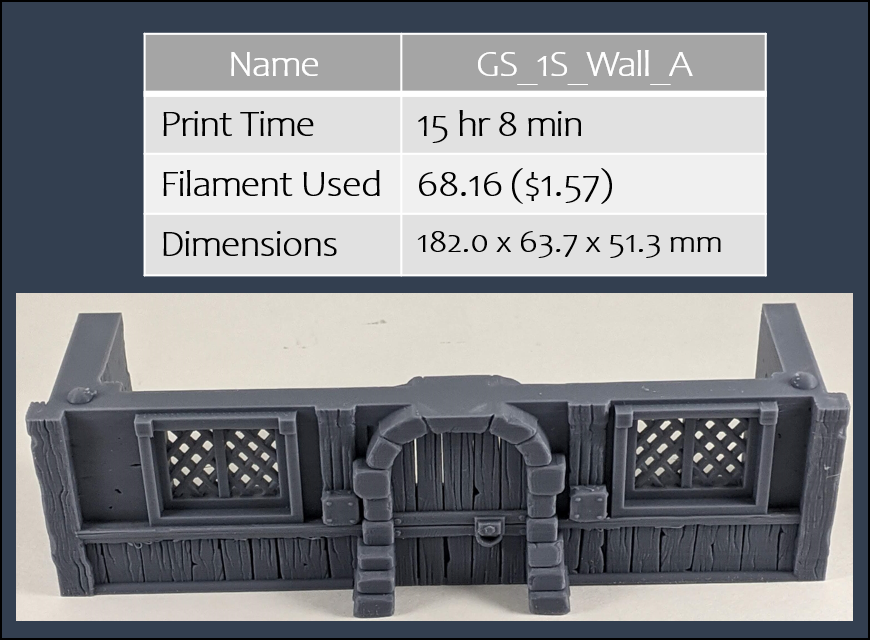

All details on print information per piece is listed below.


Print Data

For ALL FDM print profile settings used in this print build. Here is the Google Doc which lists them all.

**Special Advice** These files print perfectly fine without supports on a FDM printer. Although files are supplied as supported versions they are not necessary as the bricks on the files are simple overhangs.

Printer: Prusa mk3s
Filament: ESun PLA+ Grey
Layer Height: 0.1 mm
Time to Print all components: 23 hr 20 min
Filament to Print: 208.3 g
Estimated Cost to Print: $4.79


Support Settings

Cura Tree supports were used for the Wall sections. Entire breakdown of support settings for Cura 4.8.0 are shown below (this should also work for Cura 4.9.0).

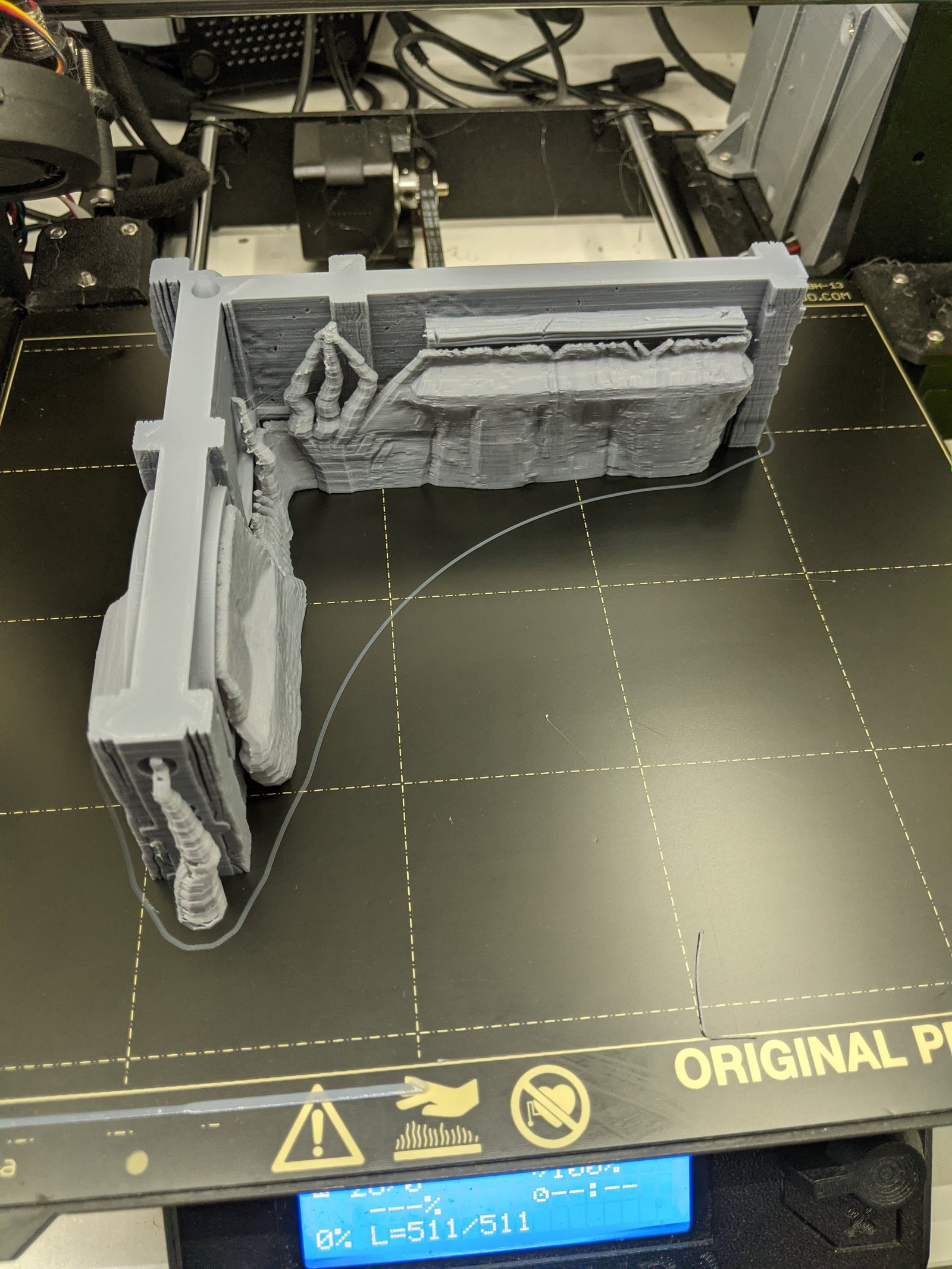

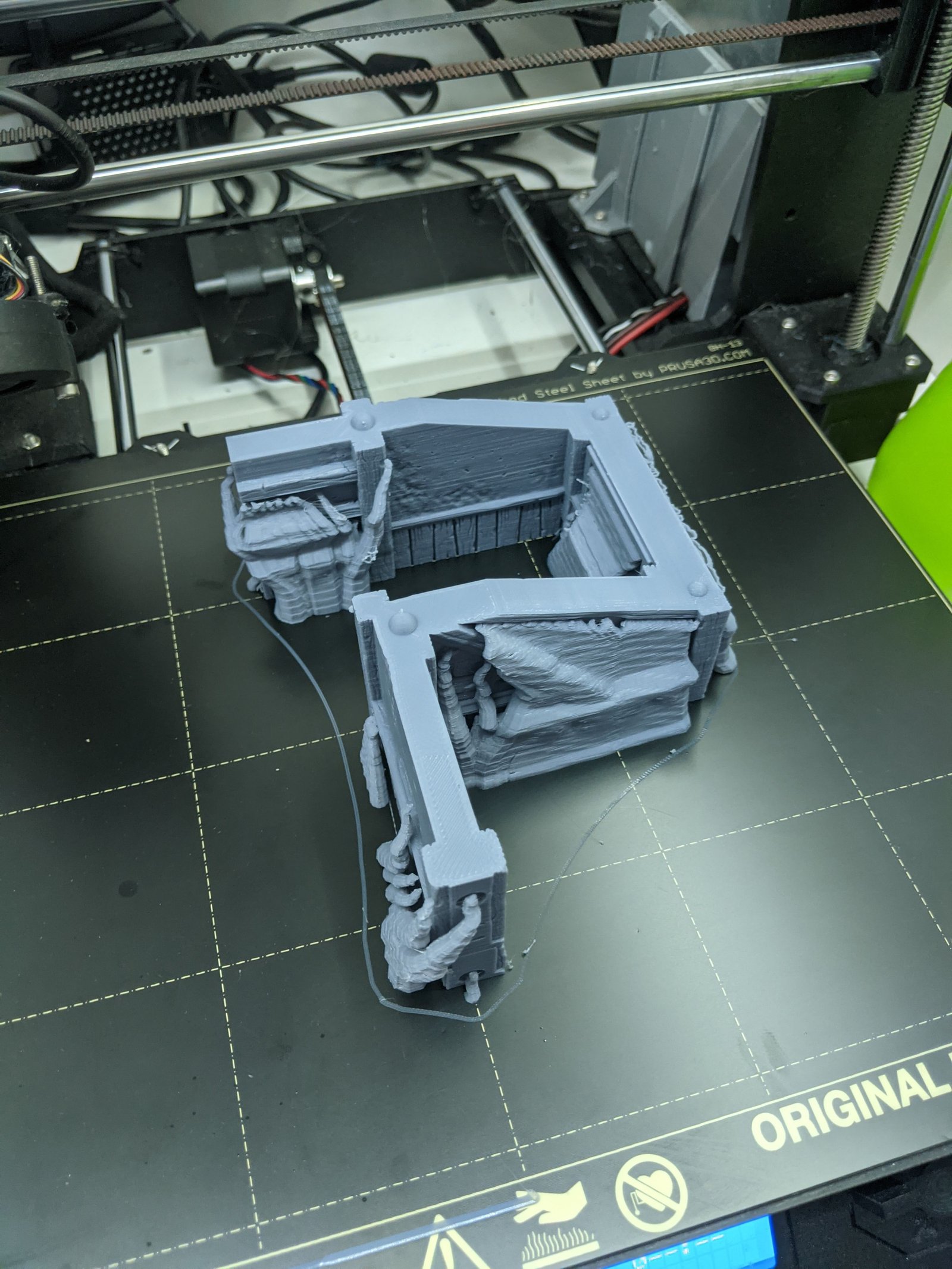

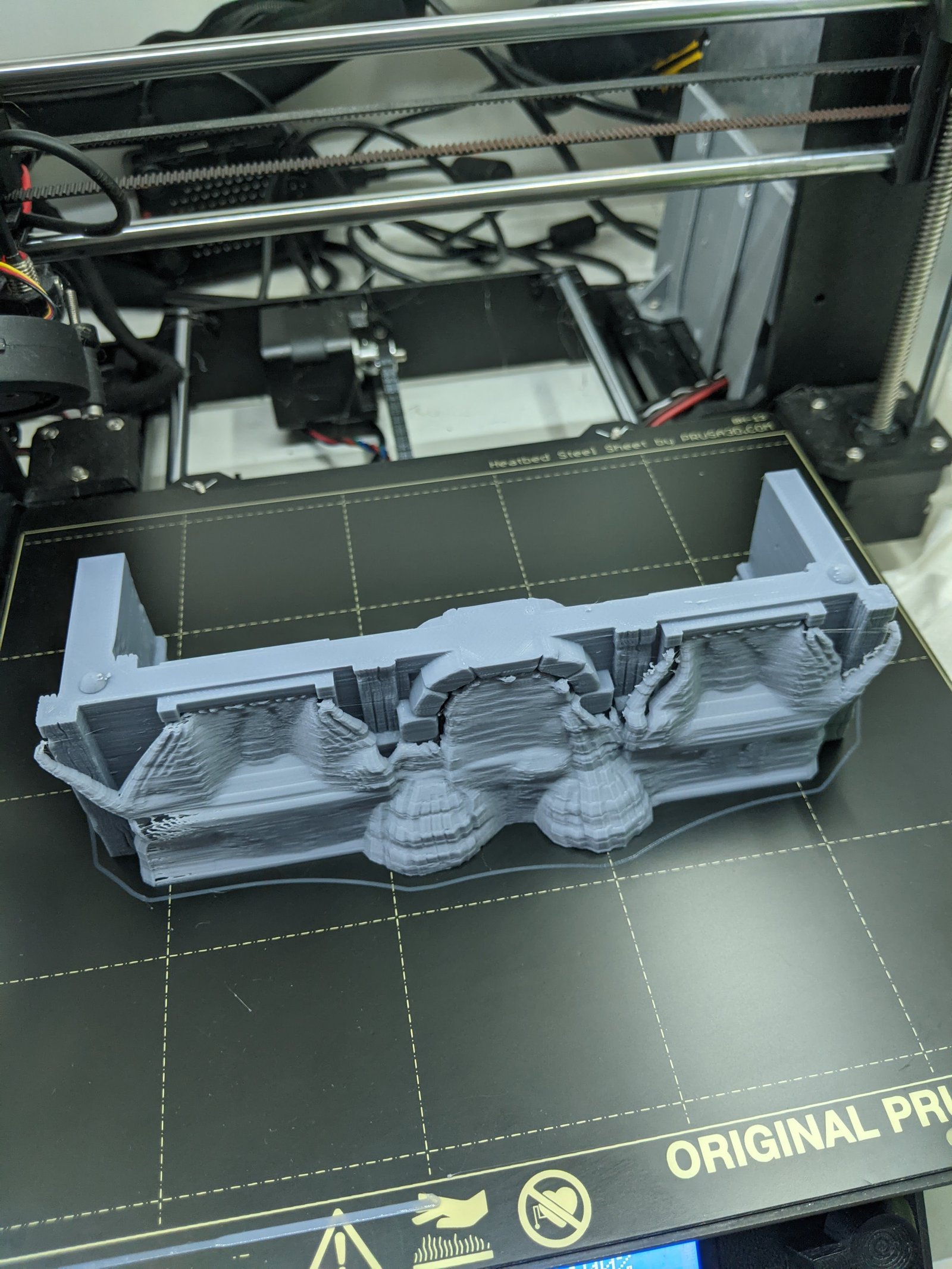

For a visual representation of what the walls looked like with supports still attached images of all three wall sections on the print bed are shown below.


Required Print Processes


The most notable difficulty is that ALL pieces of this set require rotation of opened STL file to be flat on the print bed when loading into your slicer. The largest thing to look out for is to make sure that the bottom of each base piece is flush against the build plate. This ensures a good solid layer of adhesion for your print and best success while printing. When looking for the side to put against the build plate look for the side that has no details.

Image below shows rotation of piece from Fishers Hut print logs but concept is same for Blacksmith as well.

Example of FH_Base_A model loaded into Cura and required rotation
